Haltech has dropped a big one on the modified car community this afternoon, unveiling their new S-Series range of ECUs.

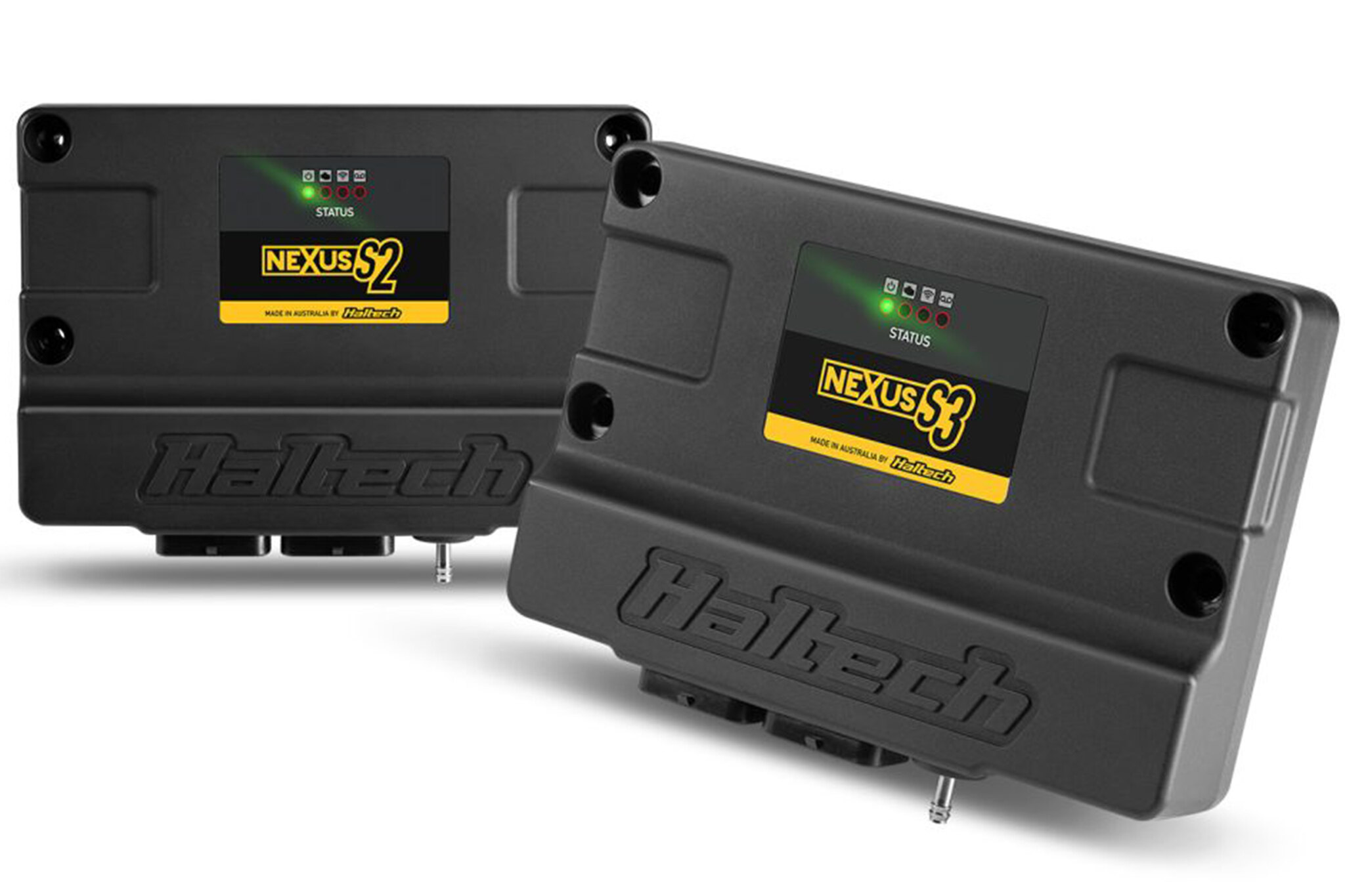

Consisting of the Nexus S2 and S3, they are essentially successors to the old but still very effective Elite 1500 and former top of the line Elite 2500, respectively.
The new S-Series Nexus range offer a serious upgrade in performance and functionality over the Elite series, the S-Series combines all the classic functionality of the Elite two-connector range, with new features and the superior processing power of the successful Nexus platform.
KEY FEATURES
- Supports Dual Drive-by-Wire Throttles
- Single Channel Onboard Wideband: Expandible to 10 channels via external CAN devices
- Onboard Wi-Fi using internal antenna: Enables remote monitoring and tuning through NSP and Haltech Connect App
- USB 2.0 Comms via USB-C: Cable comms speeds up to 40x faster than Elite. Power-up over USB means you can set up your ECU before installing it in your vehicle.
- Torque Management: Advanced drag racing function enabling pre-defined wheel slip, previously only available on NEXUS R series and Elite 2500T.
- 128MB Onboard Data-logging.
- Flexible IO – Unused outputs can be reassigned
Compare the S-Series with the Universal range
Product suits
NEXUS S2 | NEXUS S3 |
Up to 4-cylinder and 2-rotor engines with full sequential ignition and injection. | Up to 8-cylinder and 2 to 4-rotor engines with full sequential ignition and injection. |
Up to 8 cylinders in semi-sequential, and up to 12 cylinders in batch or multipoint injection patterns | Up to 12 cylinders in semi-sequential, batch or multipoint injection patterns |
Distributor ignition systems, multi-coil systems, or CDI systems. | Distributor ignition systems, multi-coil systems, or CDI systems. |
Normally aspirated or forced induction. | Normally aspirated or forced induction. |
Outputs
NEXUS S2 | NEXUS S3 |
4 x Ignition | 8 x Ignition |
4 x Injection (peak and hold) | 8 x Injection (peak and hold) |
6 x Digital Pulsed Outputs (DPO) | 6 x Digital Pulsed Outputs (DPO) |
4 x Half Bridge Outputs (HBO) (max 2 x H-Bridges/DBW throttles) (8A max when used as “High Side outputs”) | 4 x Half Bridge Outputs (HBO) (max 2 x H-Bridges/DBW throttles) (8A max when used as “High Side outputs”) |
ECR output (grounds the negative side of a relay) | ECR output (grounds the negative side of a relay) |
Inputs
NEXUS S2 | NEXUS S3 |
Onboard MAP sensor (4 Bar) | Onboard MAP sensor (4 Bar) |
11 x Analog Voltage Inputs (AVI) | 11 x Analog Voltage Inputs (AVI) |
2 x Differential Engine Position Inputs (Trigger and Home) | 2 x Differential Engine Position Inputs (Trigger and Home) |
6 x Synchronized Pulsed Inputs (SPI) | 6 x Synchronized Pulsed Inputs (SPI) |
2 x Knock Inputs | 2 x Knock Inputs |
1 x Onboard Wideband Controller (NTK/LSU 4.9) | 1 x Onboard Wideband Controller (NTK/LSU 4.9) |
1 x Ignition Switch Input | 1 x Ignition Switch Input |
Other
NEXUS S2 | NEXUS S3 |
1 x 5V Sensor supply | 1 x 5V Sensor supply |
1 x 8V Sensor supply | 1 x 8V Sensor supply |
1 x Sensor ground | 1 x Sensor ground |
2 x Switched power input pins | 2 x Switched power input pins |
2 x Battery ground pins | 2 x Battery ground pins |
Onboard Wi-Fi | Onboard Wi-Fi |
FEATURES
- Controlled via NSP (Nexus Software Programmer)
- Dual Drive by Wire Throttle Control (DBW)
- High or Low Injector Impedance Control, with programmable peak current and hold current
- Flexible tuning setup for Petrol (Gasoline), LPG, Methanol and Ethanol allows you to simply select your fuel type
- Flex Fuel Function – Tune your engine’s boost, fuel and ignition by ethanol content
- Long-term learning (Auto-tune) on fuel, ignition, cam, boost & idle control maps (up to 4D)
- Dual CAN Bus communication for Haltech Dashes and expansion devices.
- Closed Loop Idle Speed Control with learning for consistent idle stability Requires 1 or 2 user-defined outputs (BAC type) or 4 user-defined outputs (Stepper motor type)
- 4D Closed Loop Boost Control
- Traction Control – Control your engine’s power output via mappable front vs rear axle or individual wheel speed slip
- Dual Knock Control – Synchronized to engine position with high-speed digital filtering for accurate detection.
- Closed Loop O2 Control – Dual bank control capable with optional external CAN O2 Wideband Controller Kit
- Variable cam control – Independently control up to 4 camshafts – Requires a minimum of 1 user-defined input & output per variable cam
- Load sensing by Throttle Position (TPS), Manifold Absolute Pressure (MAP), Mass Air Flow (MAF) or Engine Pressure Ratio (EPR)
- Stepper Motor Control
- Intake Air Bleed Control
- Shock Travel & Ride Height Control
- Sequential turbo control
- Onboard Wi-Fi – Enables remote monitoring and tuning through NSP and Haltech Connect
- On-board data logging – Up to 100 channels at 1kHz (1ms) sampling rate or up to 300 channels at a lower sampling rate, loop logging. with 128MB of internal memory.
- Laptop data logging -Data log all available channels directly to your laptop’s hard drive for both tuning and diagnostics
- 4 channel Oscilloscope
- IP64 Rating
ADVANCED TUNING
- Tuning Table Resolution up to 32 x 32 x 8 (4D)
- Limitless tuning flexibility -Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections. Eg: Tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility – Dual mapping is a thing of the past.
- Per Cylinder Tuning Correction – 3D
- Wideband O2 – Connect up to 10 Channels via CAN expansion devices
- Thermocouples/EGT (Exhaust Gas Temperature) – Connect up to 12 Channels via external CAN expansion devices
- Engine Protection – Set advanced multi-level limits for sensors and protect your engine against common causes of failure.
AUTOMATIC TRANSMISSION CONTROL
- Ford AODE/4R70W
- GM 4L60E/4l80E
- Toyota A340E
- Lenco
- Liberty – Multiple Outputs Active
- Jatco (Nissan) 4AX series
- Jatco (Nissan) 4R series
- ZF 6HP26 (Available for Ford Falcon 6 Cylinder Only)
RACE FUNCTIONS
- Launch Control – Control your engine’s power delivery, RPM & boost for consistent performance at the start line
- Nitrous Control – Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays & banked control options
- Boost Control – Intelligent 4D Closed loop, with learning, flexible user-definable axis and 14 fully user-definable boost target and duty cycle corrections
- Multiple Boost Control Modes – EG: boost by gear, road speed, race timer, shock travel, ride height etc
- Closed Loop CO2 Boost Control – Wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hard-core racer
- Anti-Lag/Rotational idle – for closed course racing, rally, circuit or drift. Build and maintain boost during closed throttle conditions
- Rolling Anti-Lag – lock to your current (or pre-set) RPM or road speed for roll racing or pit lane limiting
- Flat Shift – Optimize your shifting precision via a combination of inputs such as a clutch switch or strain gauge.
- Shock Travel/Ride Height inputs – Allow dynamic tuning and data logging to assist in chassis development and power delivery
- Timer Functions – Use the combination of the race timer and 10 additional programmable timers for time-based control of multiple engine parameters, power delivery and other user-definable functions
- Transbrake Function – Allows smooth and consistent control of start line staging (Bump or Creep)
WHAT’S IN THE BOX?
NEXUS S2 | NEXUS S3 |
1 x HT-212000 Nexus S2 ECU | 1 x HT-213000 Nexus S3 ECU |
1 x USB-C Cable | 1 x USB-C Cable |
1 x USB-C Dust Cap | 1 x USB-C Dust Cap |
1 x Haltech Fabric Keytag | 1 x Haltech Fabric Keytag |
1 x Quick Start Guide Booklet | 1 x Quick Start Guide Booklet |
1 x Wiring Diagram | 1 x Wiring Diagram |
Haltech Stickers | Haltech Stickers |
S-SERIES FAQs
What is the difference between the Elite and the S-Series?
With the S2 and S3, we’ve taken the best features of the Elite 1500 and Elite 2500, and combined them with more modern Nexus hardware.
The S-Series gives you these advantages over the Elite range:
- Supports Dual Drive-by-Wire Throttles
- Single Channel Onboard Wideband: Expandible to 10 channels via external CAN devices
- Onboard Wi-Fi using internal antenna: Enables remote monitoring and tuning through NSP and Haltech Connect App
- USB 2.0 Comms via USB-C: Cable comms speeds up to 40x faster than Elite. Power-up over USB means you can set up your ECU before installing it in your vehicle.
- Torque Management: Advanced drag racing function enabling pre-defined wheel slip, previously only available on NEXUS R series and Elite 2500T.
- 128MB Onboard Data-logging.
- Flexible IO – Unused outputs can be reassigned
What is the difference between the R-Series and the S-Series?
The R-Series includes on-board Power Distribution functionality, whereas the S-Series doesn’t.
Will you stop producing the Elite Series?
No, the Elite Series will continue production for the foreseeable future.
Will there be a Nexus version of the Elite 750 and Elite 550?
No, we are not currently developing a Nexus successor for the Elite 750 or 550.
ACCESSORIES
- HT-039067 – Nexus S2/S3/R3 Tube Mount Kit – 41.275mm (1.625″)
- HT-039065 – Nexus S2/S3/R3 Tube Mount Kit – 31.75mm (1.25″)
- HT-010746 – LSU4.9 Wideband Hardware Pack
- HT-010747 – NTK Wideband Hardware Pack
- HT-010723 – Wideband Adaptor Harness – 400mm
