THIS MONTH we welcome ‘Doctor’ Tim Bartrop to the Street Machine fold. An experienced automotive engineer, Tim will pen a series of yarns talking us through the dos and don’ts of car modification – starting this time with the don’ts. This feature deals with the most common mistakes Tim has encountered in the course of his automotive engineering work.

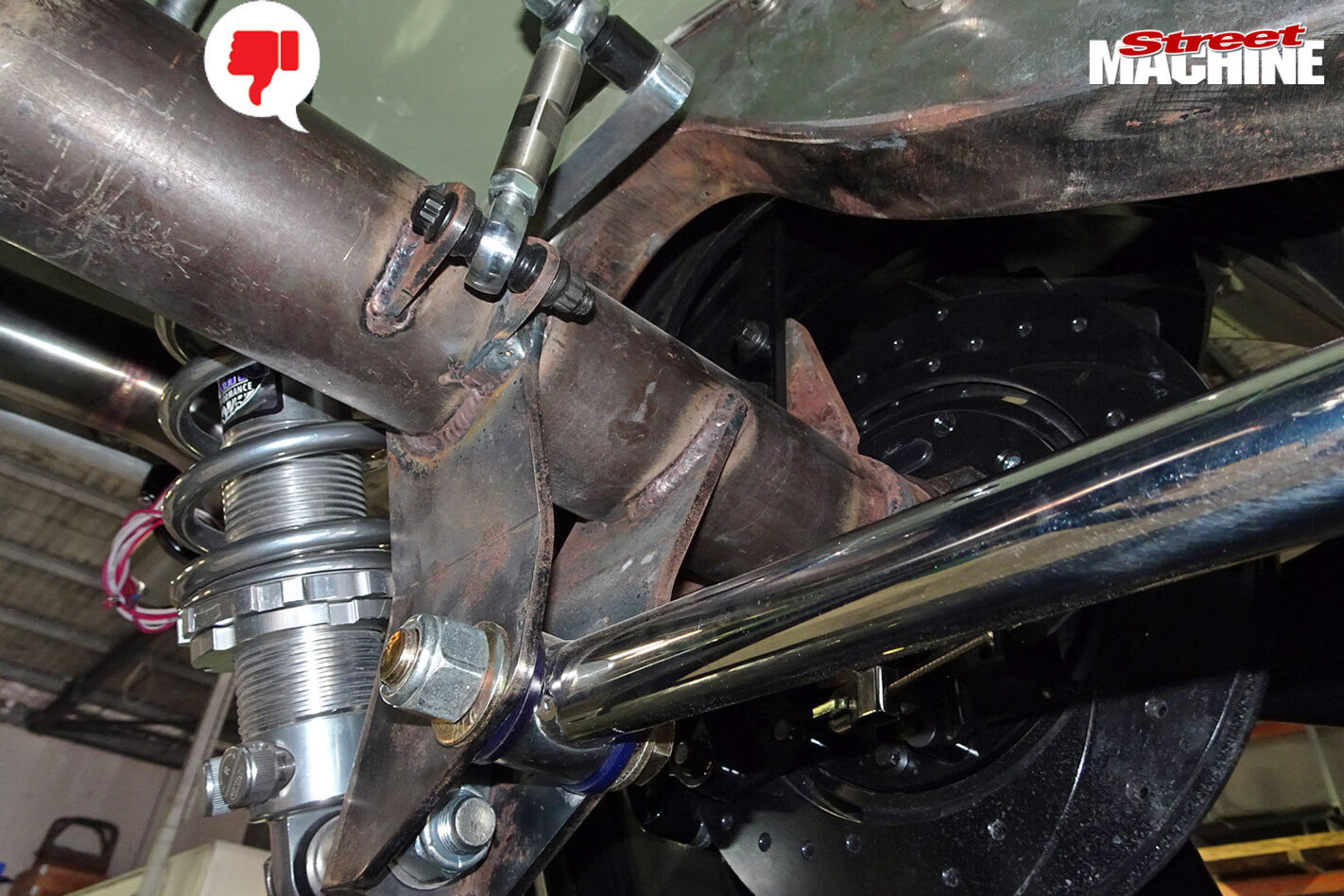

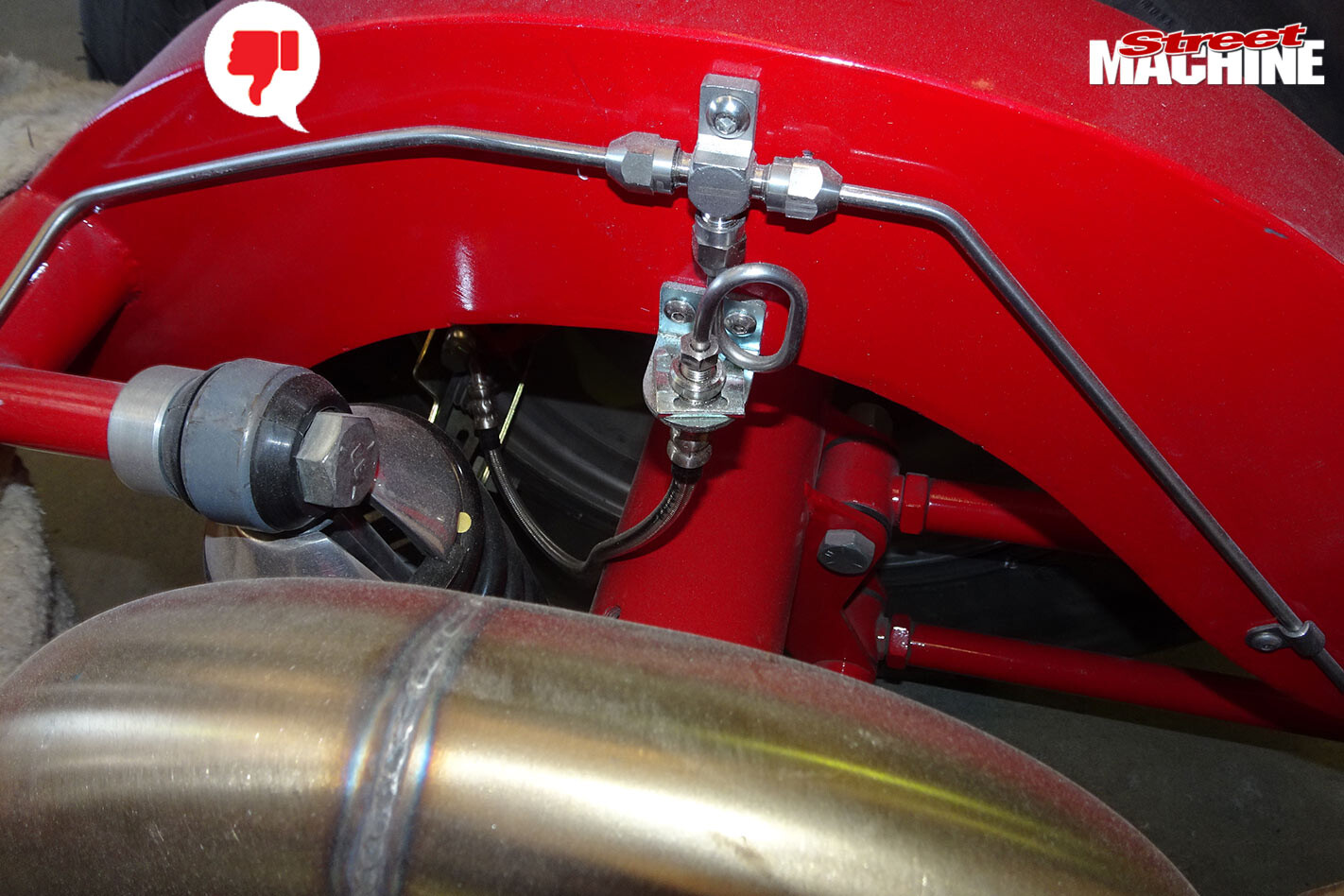

bump stopsNot fitting bump stops is by far the most common fault I see, particularly on modified vehicles where chassis, front suspension and diff changes have been made. Bump stops are designed to limit overall suspension travel so that wheels don’t contact the body panels and suspension components don’t clash with chassis elements.

bump stopsFrequently they are not there on cars I inspect, and what I find is diffs hitting the chassis, tailshafts hitting the floor, control arms fouling on the exhaust or shock absorbers bottoming out. Checking how suspension travel works in your car is critical.

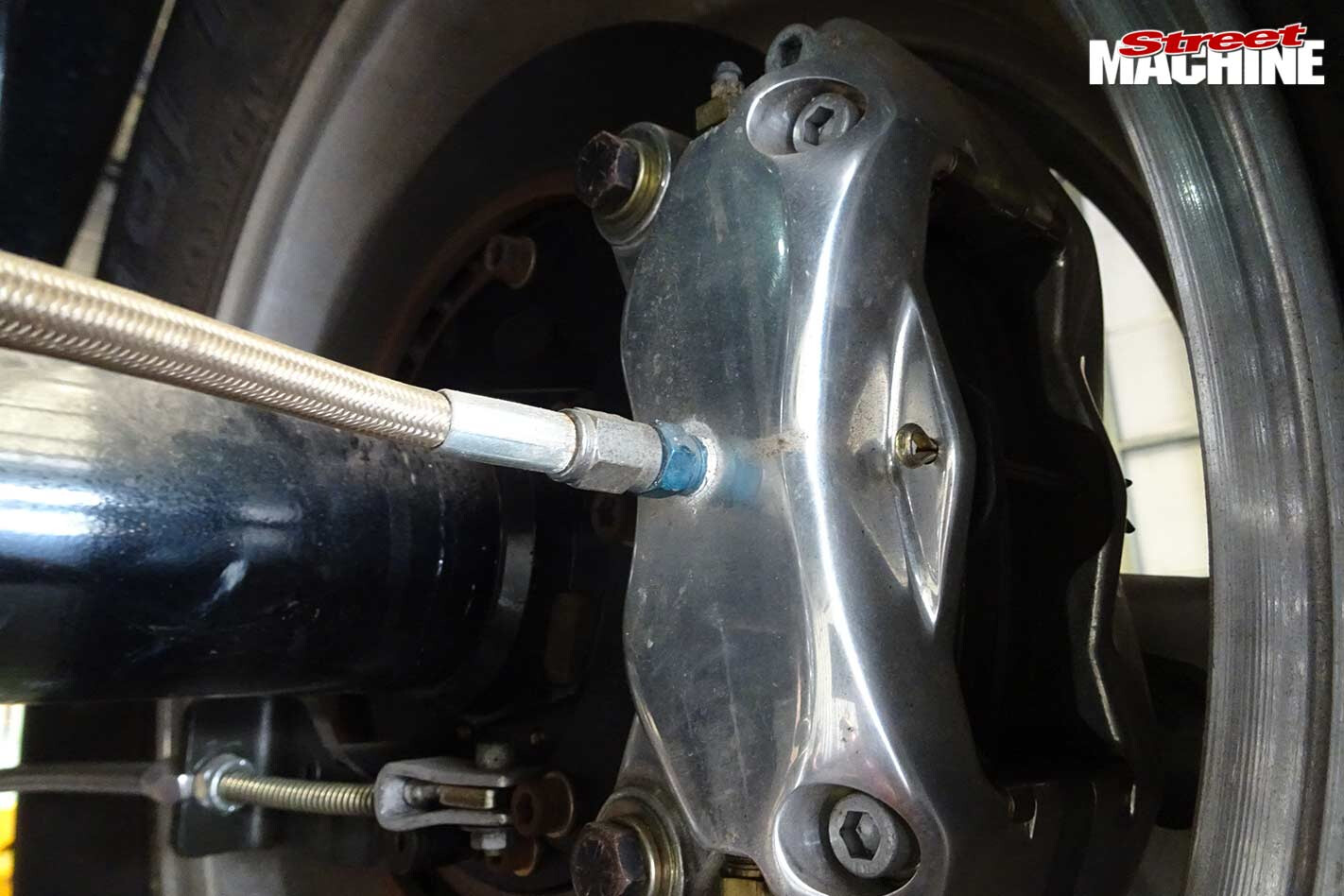

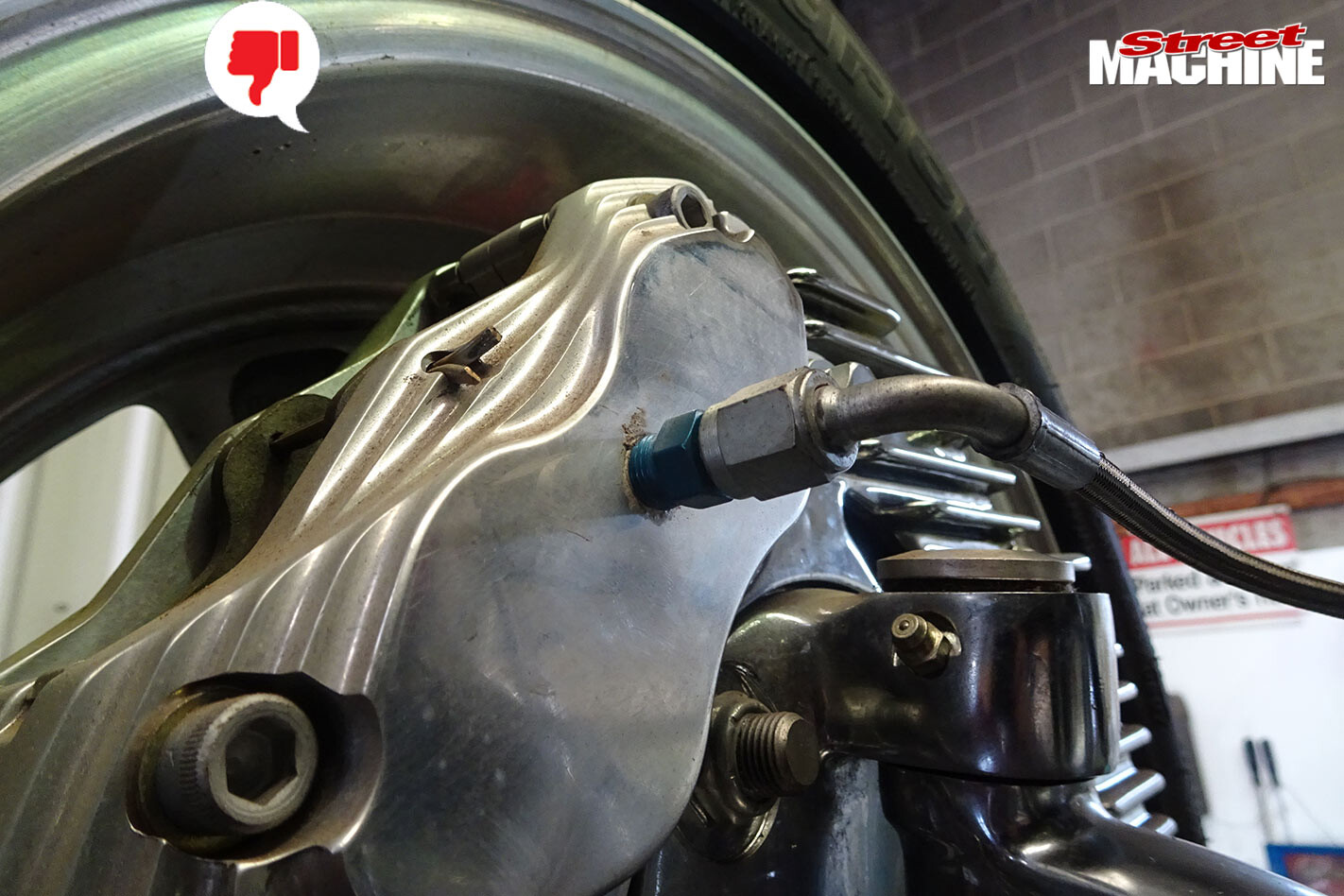

brake fittingsI have been experiencing a spate of NPT threaded pipe fittings in brake systems this year, in Wilwood brakes and in accessories such as brake balance and residual valve fittings. The two accepted forms of sealing brakes in Australia are the tapered-seat, parallel-threaded type and the copper-washer type; sealing brakes using tapered fittings with some sealant is not accepted.

brake fittingsAll good brake shops can rectify this situation by converting the thread to a parallel metric style, together with a banjo fitting and copper washer.

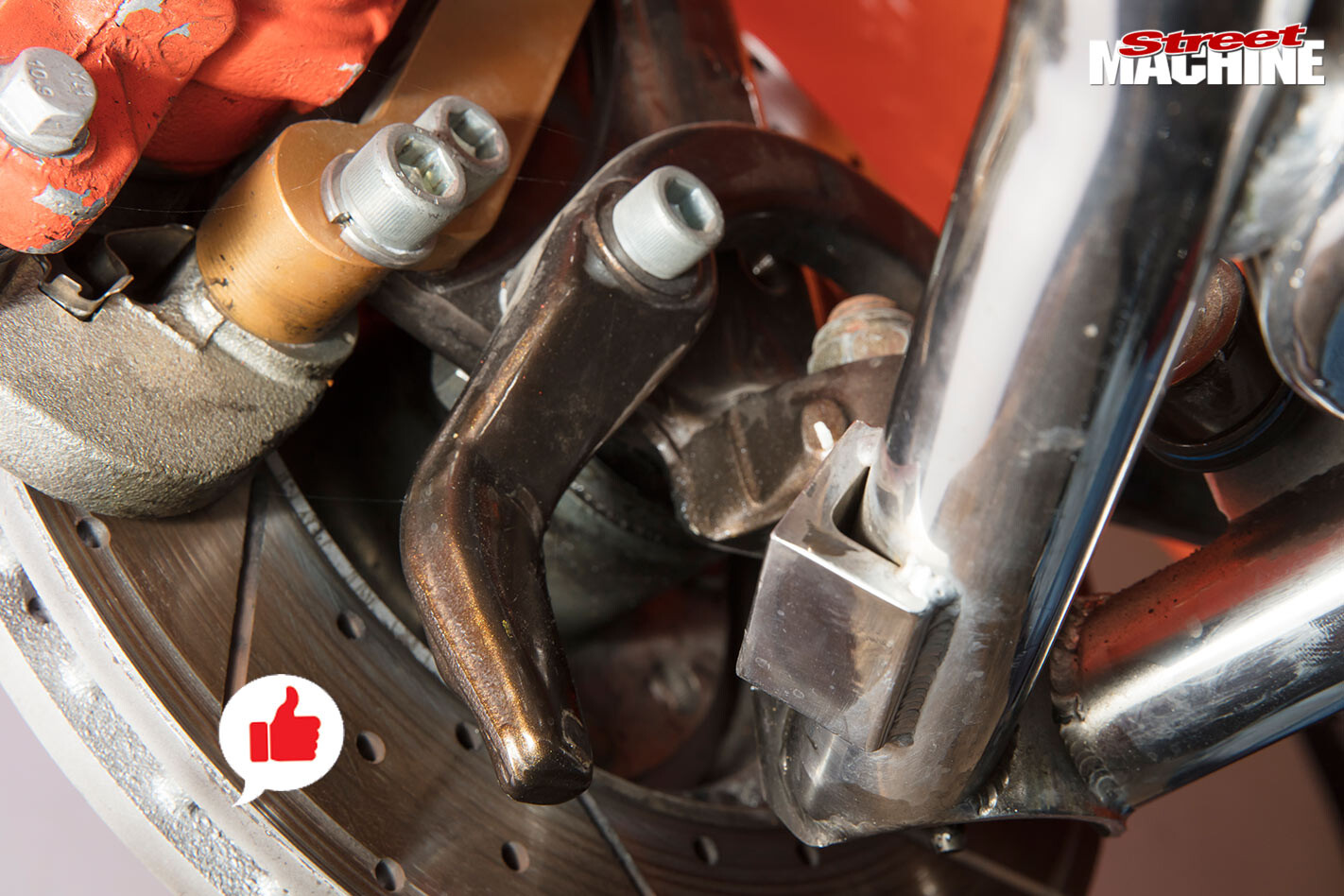

steering stopsSteering stops are designed to limit the lock of the front wheels so that they do not turn past their design point. Like bump stops, their job is to stop wheels contacting bodywork and suspension components. On full lock, the steering stops prevent any bump force from being transmitted to the steering box or rack-and-pinion and damaging internal parts. When stops are not fitted, wheel rubbing is common, brake hoses can be pulled tight and disc calipers can hit the chassis. The worst case I have seen is where the steering arms went over centre and could not be returned. It was just lucky that the owner had never turned that far before!

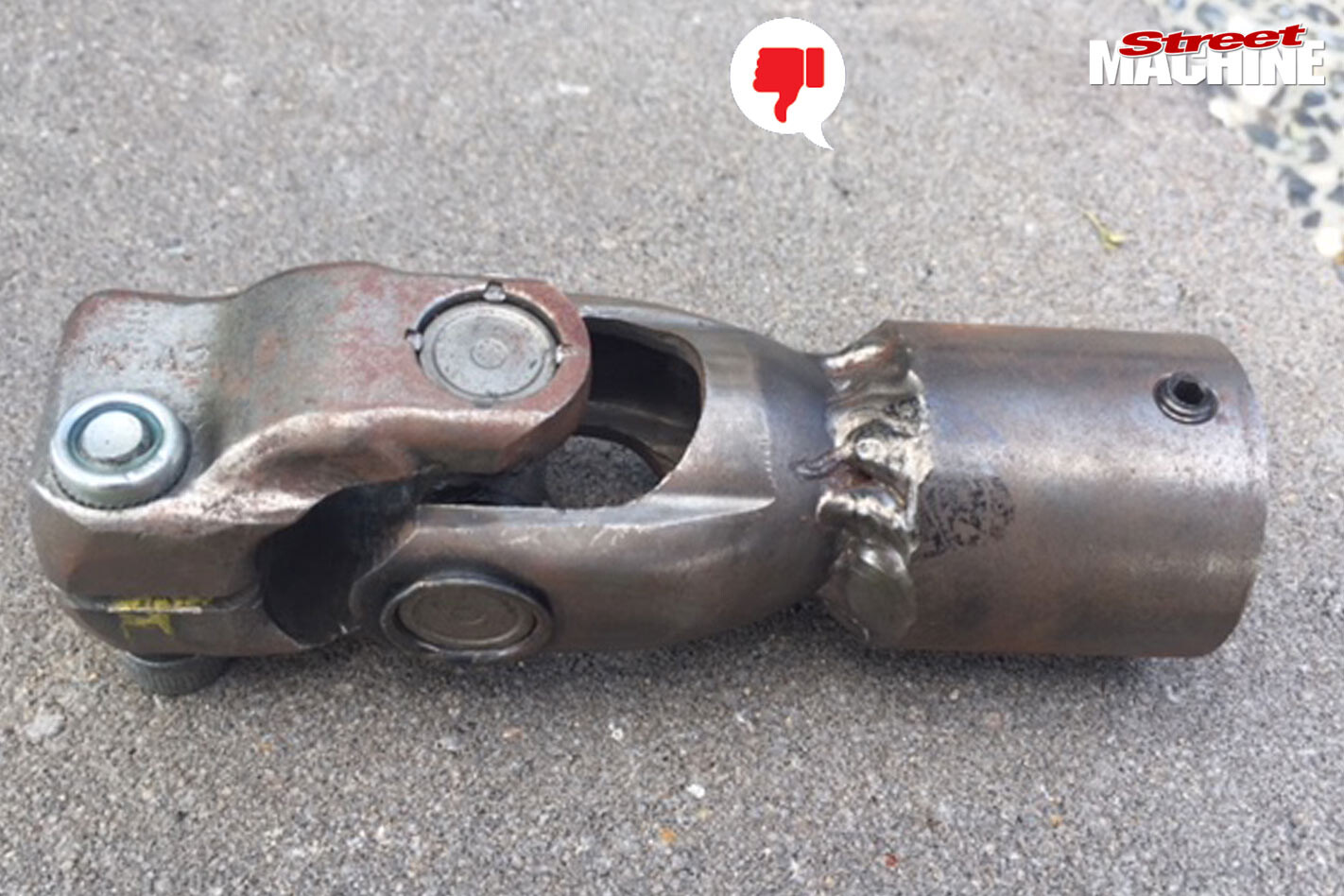

welded steering and brake componentsMost state registration jurisdictions do not allow steering components to be welded, even with X-ray and other non-destructive test methods to prove their soundness. I have not seen an application yet where the welded part could not have been made in one piece of material to eliminate the weld.

Exceptions are welded components made by vehicle manufacturers where they take responsibility for performance. Welded steering components are common in privately imported vehicles, so beware. Likewise, brake parts – such as pushrods and brake pedals, for example – should not be welded, due to their critical nature. Brake pedals can have pivot bosses welded into their levers, but not onto them; we don’t want to see brake pedals break off during operation. Any fabricated brackets also need to be carefully thought through. Engineers do not like the risk involved in welded brake elements.

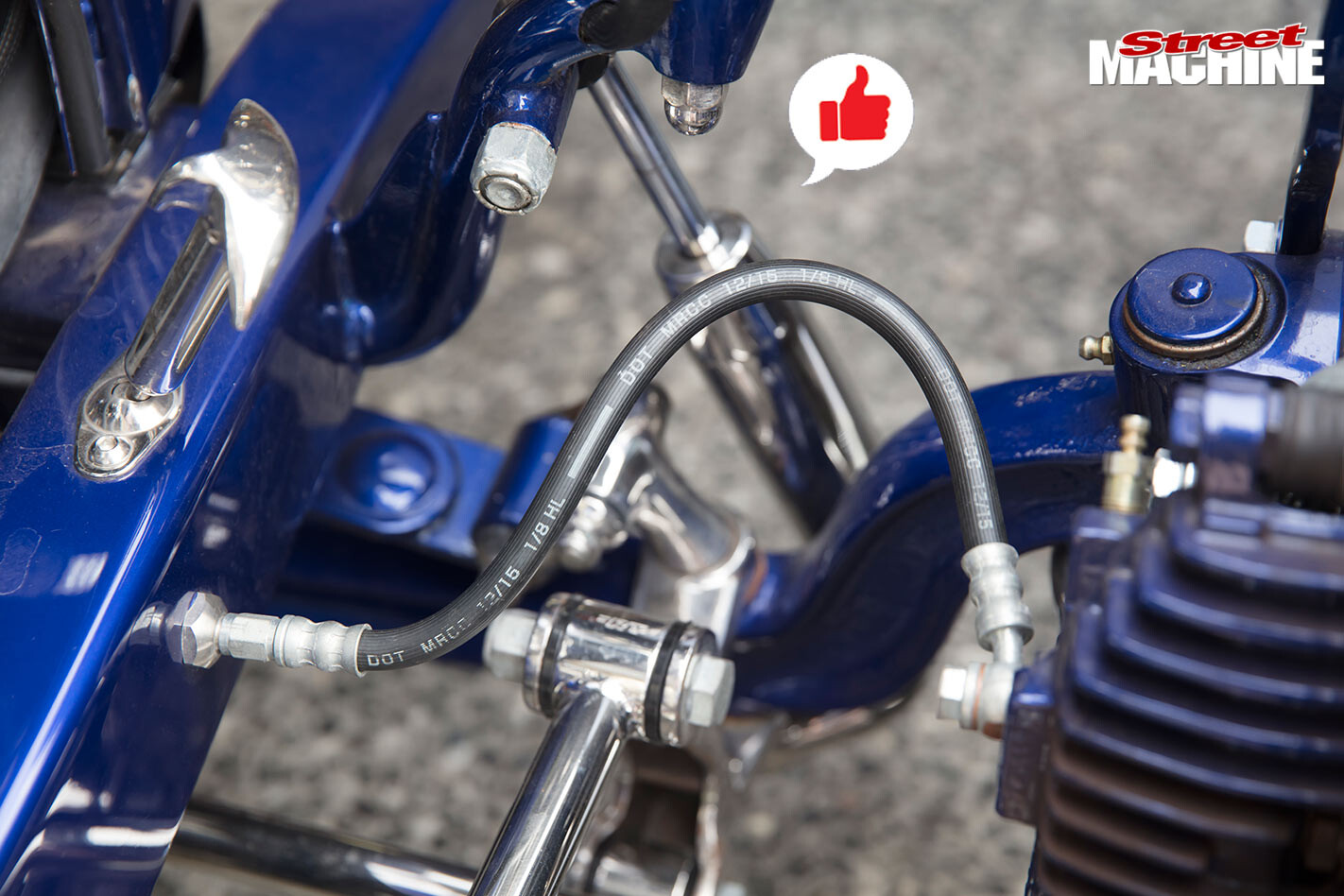

brake hose lengthDuring the build of your modified car, make sure you turn the front wheels from lock to lock and put the front and rear suspension through their full bump and droop travel. This will help you identify any of the previously mentioned issues. It will also help you to work out the ideal brake hose length. I regularly see front brake hoses that act as the steering stops because they are too short. We see others rubbing on the inside of tyres because they are too long and can’t compress enough to get out of the way on turns. Similarly, rear brake hoses need to allow for differential droop during under-body jacking, without going tight.

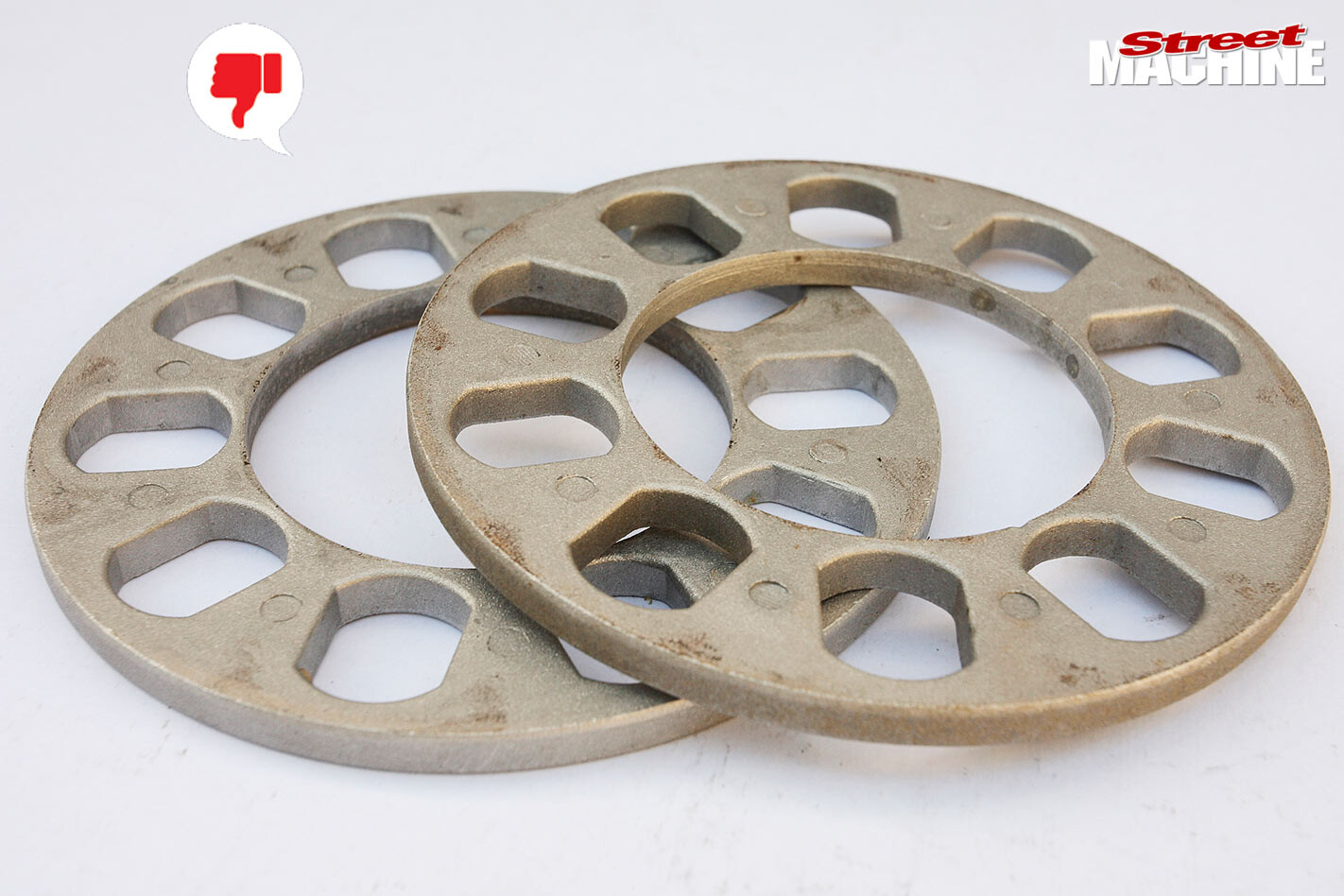

wheel spacersPlanning your wheels properly is such an important part of a street machine project. After all, wheels are expensive! Wheel spacers are often used when someone makes a mistake with their differential or wheel choice. But when I asked my advisor at the Department of Transport about wheel spacers, he replied: “Nothing must come between the wheel and the hub.” The reason is that wheel spacers apply additional loads to the wheels studs, depending on the spacer thickness, so the various DOTs around Australia won’t allow them. The solution is to choose the right diff and wheels in the first place so that spacers aren’t required.

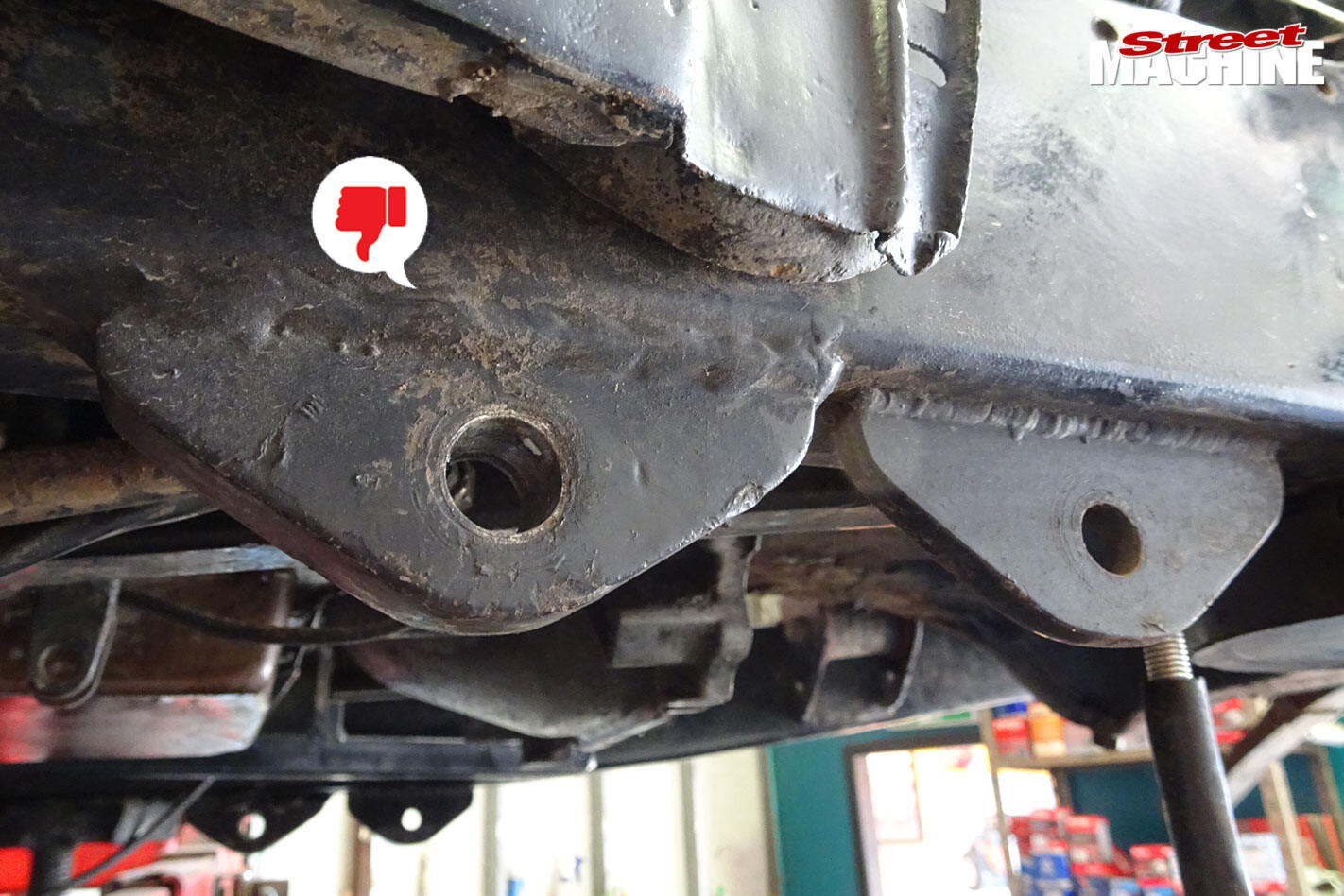

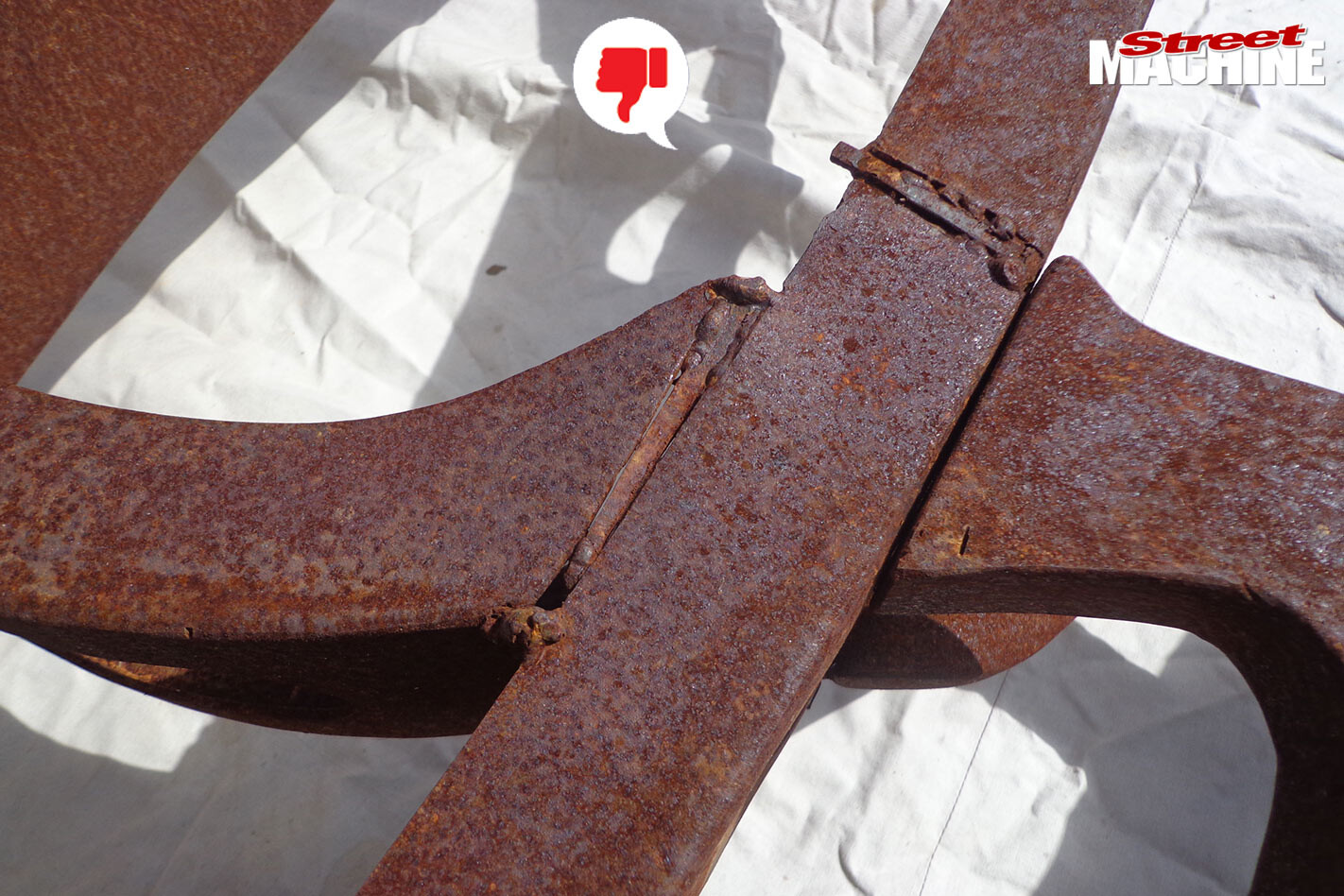

welding mistakesI see so much bad welding on modified cars. The owners don’t seem to realise that, at highway speeds, a weld failure can be fatal.

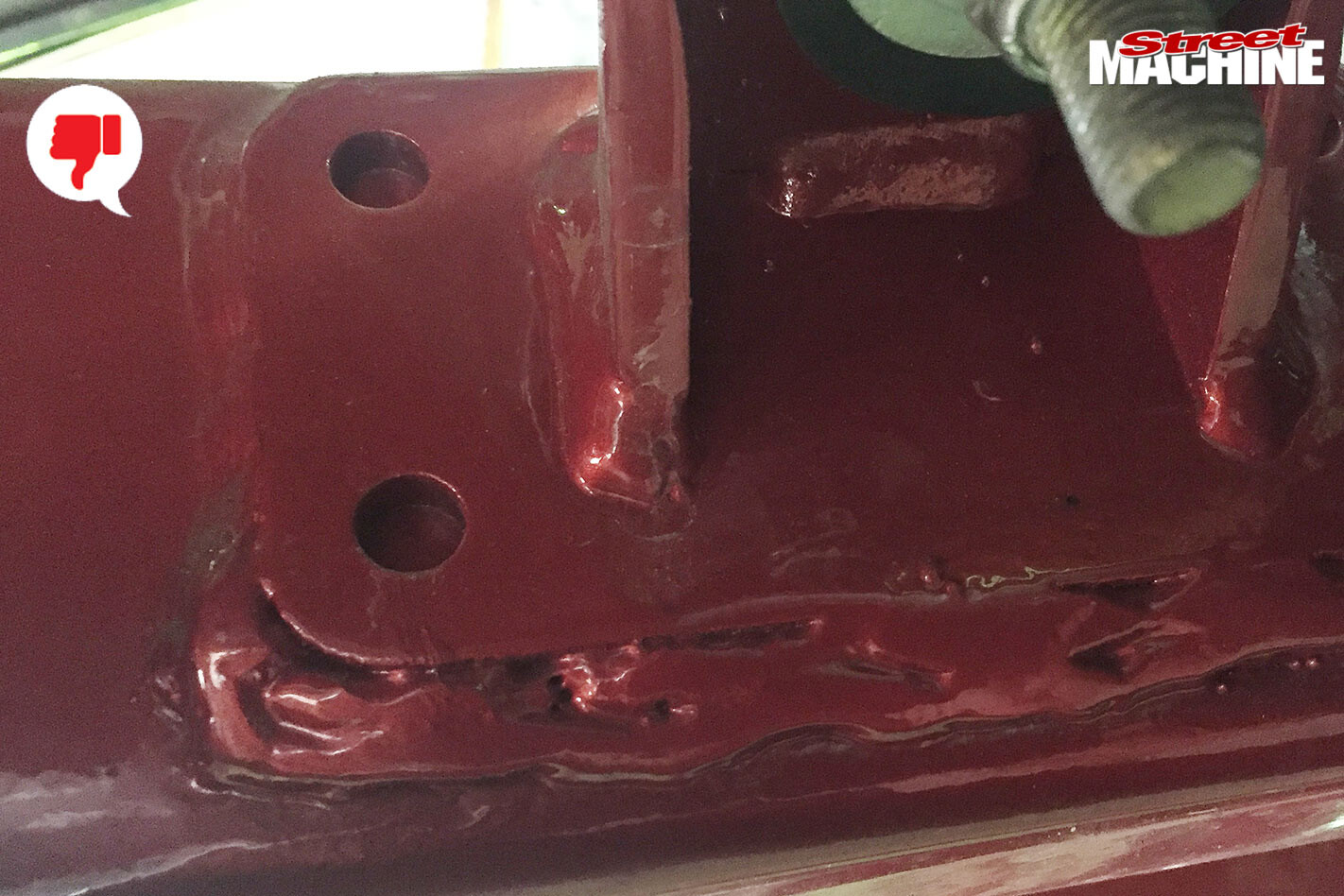

poor weldingVehicle welds are subject to cyclic loads and fatigue stresses, so all welding should be carried out by qualified welders.

poor weldingIn the modern age, quality assurance and workplace health and safety are part of our everyday lives, so it must extend into our garages and apply to the quality of our welding.

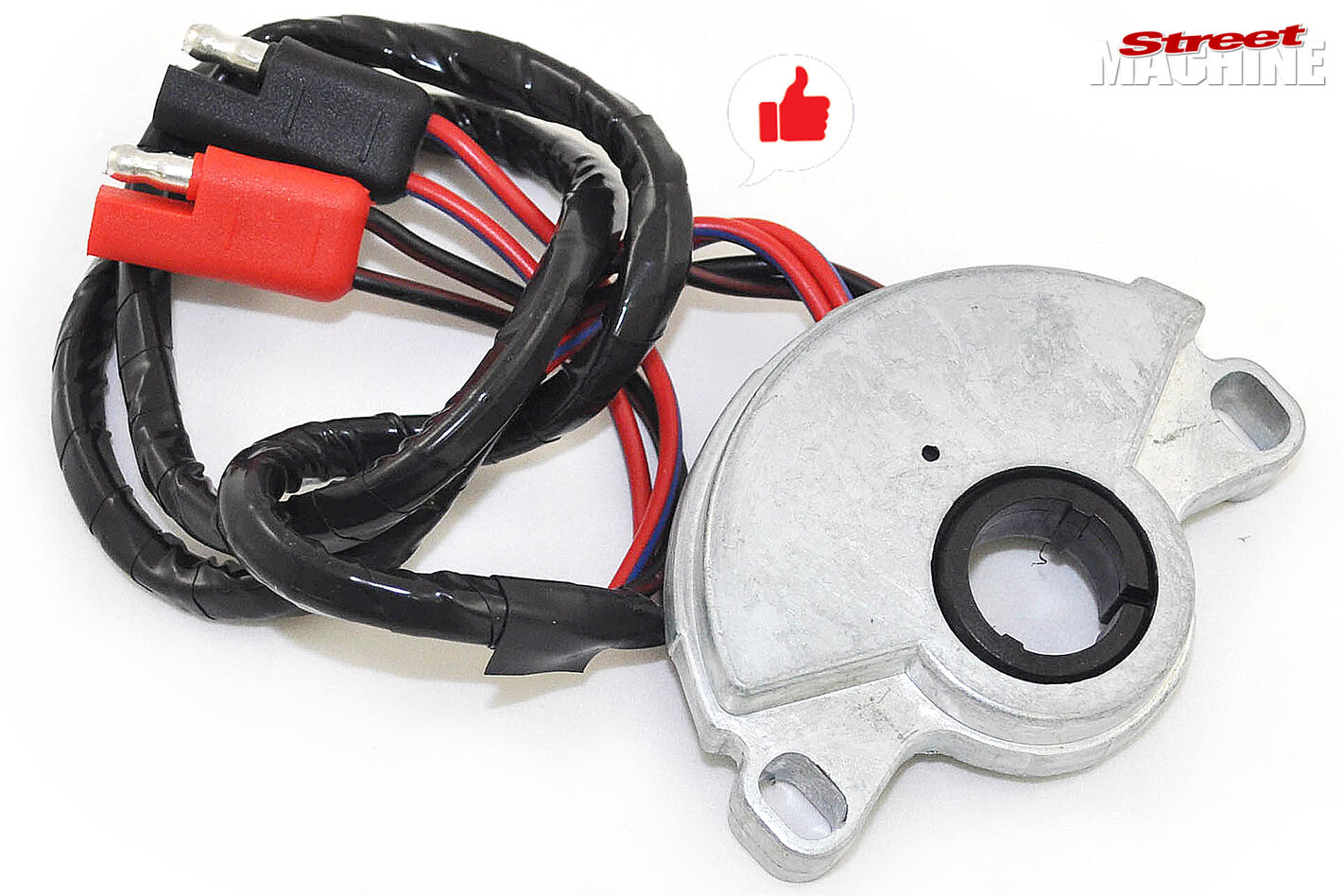

neutral start switchesI never stand in front of or behind newly finished cars at start-up, due to the number of times I have seen the vehicle immediately jump backwards or forwards. That’s why it’s important to fit a neutral start switch so the car can only be started in neutral or park. These days I know to check this before starting a car up!

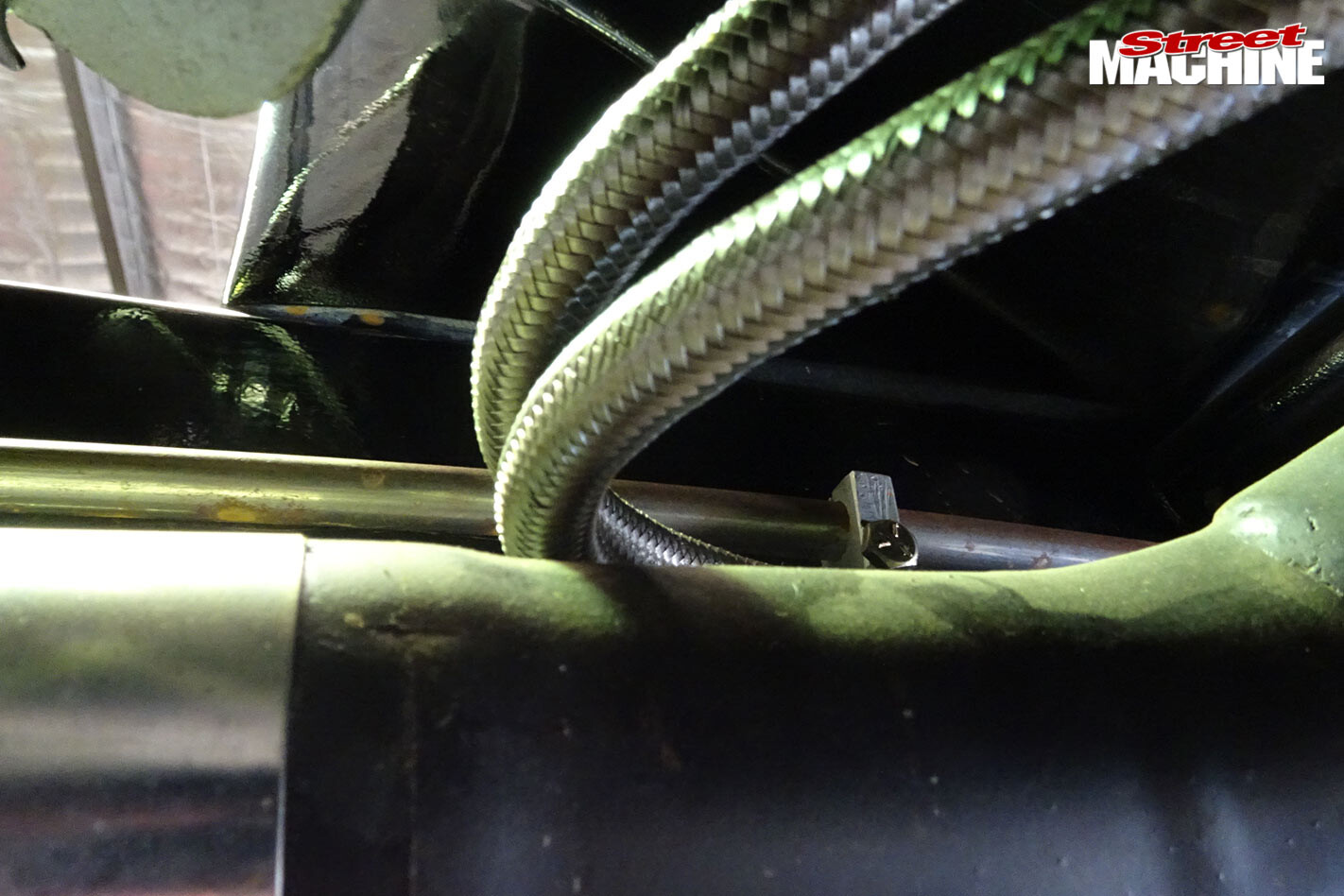

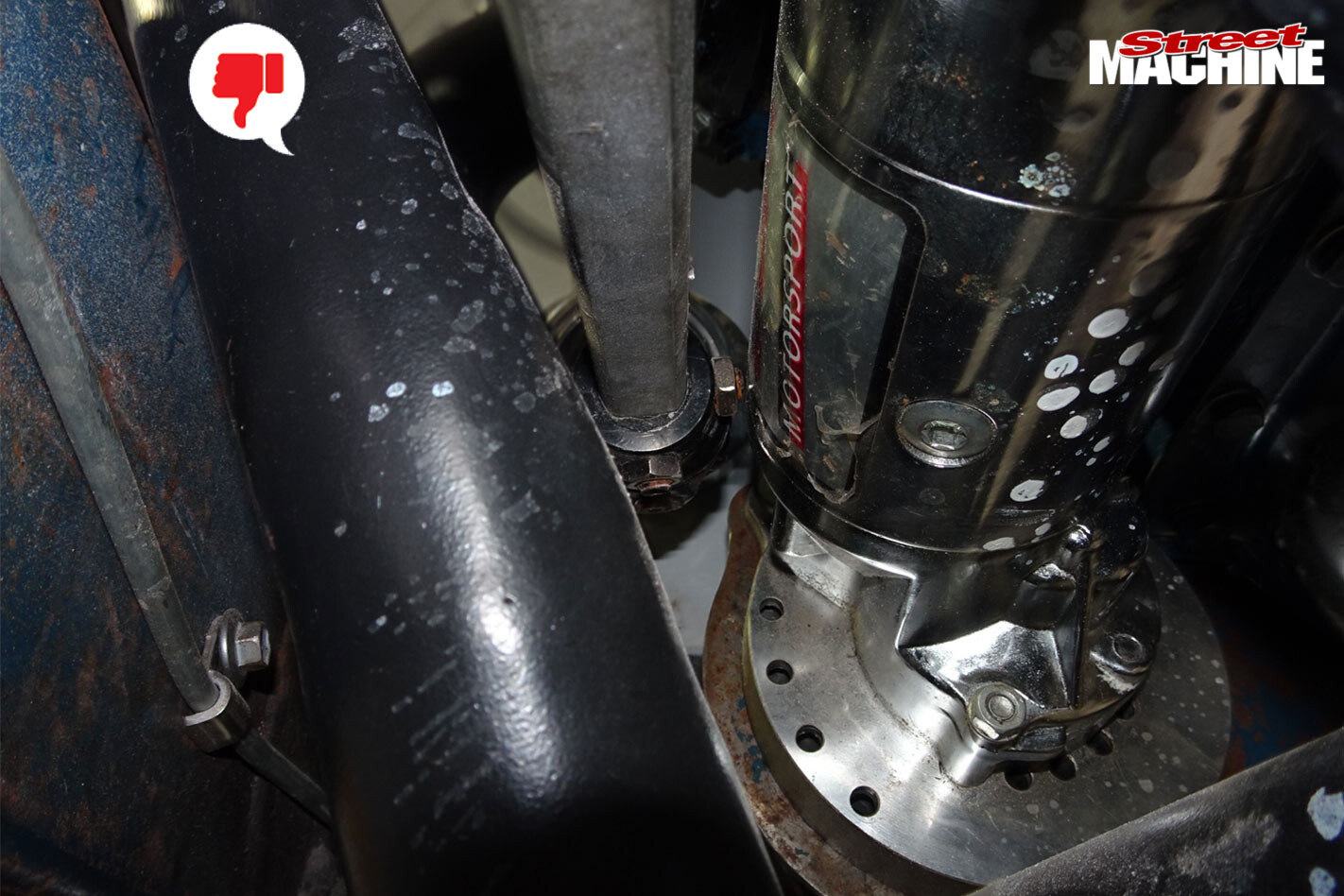

clearancesGround clearance under a vehicle is generally accepted as being 100mm minimum. What about other clearances? For safety, steering shafts should have at least 10mm or ‘a finger’ clearance to moving parts such as the engine and exhaust system. Clearance to fixed components can be minimal, of course.

clearancesThe exhaust system is a source of heat and vibration, and so must be clear of the floor and allow full movement of the differential without contact. Allowing enough tailshaft clearance might seem to be obvious, but I see so many tailshaft rub marks that I know it’s not obvious to everyone!
