Nitrous 548-cube big-block 1967 Chevrolet Camaro RS

Packing a nitrous-huffing 548ci big-block, Paul Paterson's 1967 Camaro is a brawny streeter that runs nines on the side

Photographers: Chris Thorogood

YOU’RE looking at one of Melbourne’s toughest street cars, Paul ‘Patto’ Paterson’s epic ’67 Camaro. The fat-tyred, 3800lb, 548ci fat-block F-body has run 9.40@146mph aspirated, with another 300hp worth of giggle-gas up its sleeve spare! And to think it wasn’t even the car Paul intended to buy.

This article was first published in the June 2019 issue of Street Machine

“I went up to Queensland to have a look at a pro street ’57 Chev, but it wasn’t any good,” says the auto sparky. Instead, he came home with this ’67 Camaro after falling head over heels in lust with it.

“A mate of mine had one years ago and I love the lines, especially those rear quarters, which are just awesome,” says Patto. “I’ve actually had it 10 or 11 years as I tend to hang onto stuff. I just wanted to build a tough big-block street car; I’m not interested in making it a race car.

“When I bought it, the Camaro had a 496 big-block and ’Glide, and that set-up went 10.50. I sold the 12-bolt diff off and fitted a nine-inch, then I sold that engine and bought the one that is in it now – and now I’ve rebuilt it.”

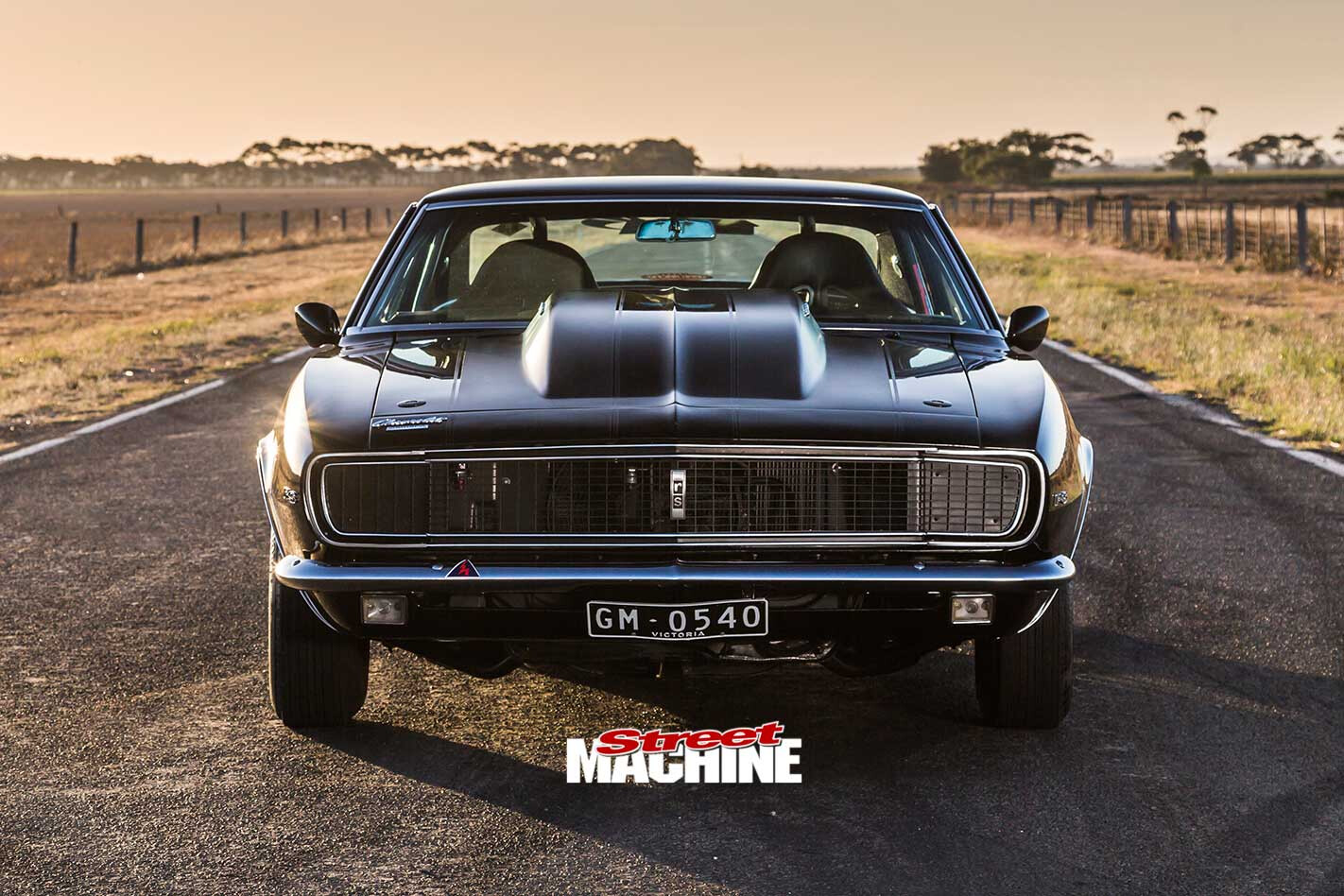

chevrolet camaro frontWhile Chevrolet made nearly 65,000 RS models out of the 220,000 Camaros in 1967, heaps more would have been sold if they came kitted out like Patto’s is now, with a nitrous-huffing 548ci Merlin big-block under their bonnet.

“I bought the engine off my mate Michael Vergis, whose big-block nitrous ’65 Impala was in Street Machine a few months ago (SM, Jan ’19),” says Patto. “It was due for a tidy-up as it’d been together for a while and had cracked pistons and that sort of stuff. So we did a new rotating assembly, alloy heads, shaft-mount rockers and all that.”

Pushing 897hp aspirated, the Merlin block runs a Scat crank, Diamond pistons and H-beam Compstar rods, wearing CNC-ported Dart Pro-1 alloy heads, a solid-roller cam, Victor Jr intake and 1050cfm Dominator carb up top. Running E85 pushed from an Aeromotive A1000 electric pump in the boot-mounted cell, Patto also has 300hp worth of nitrous he can call on.

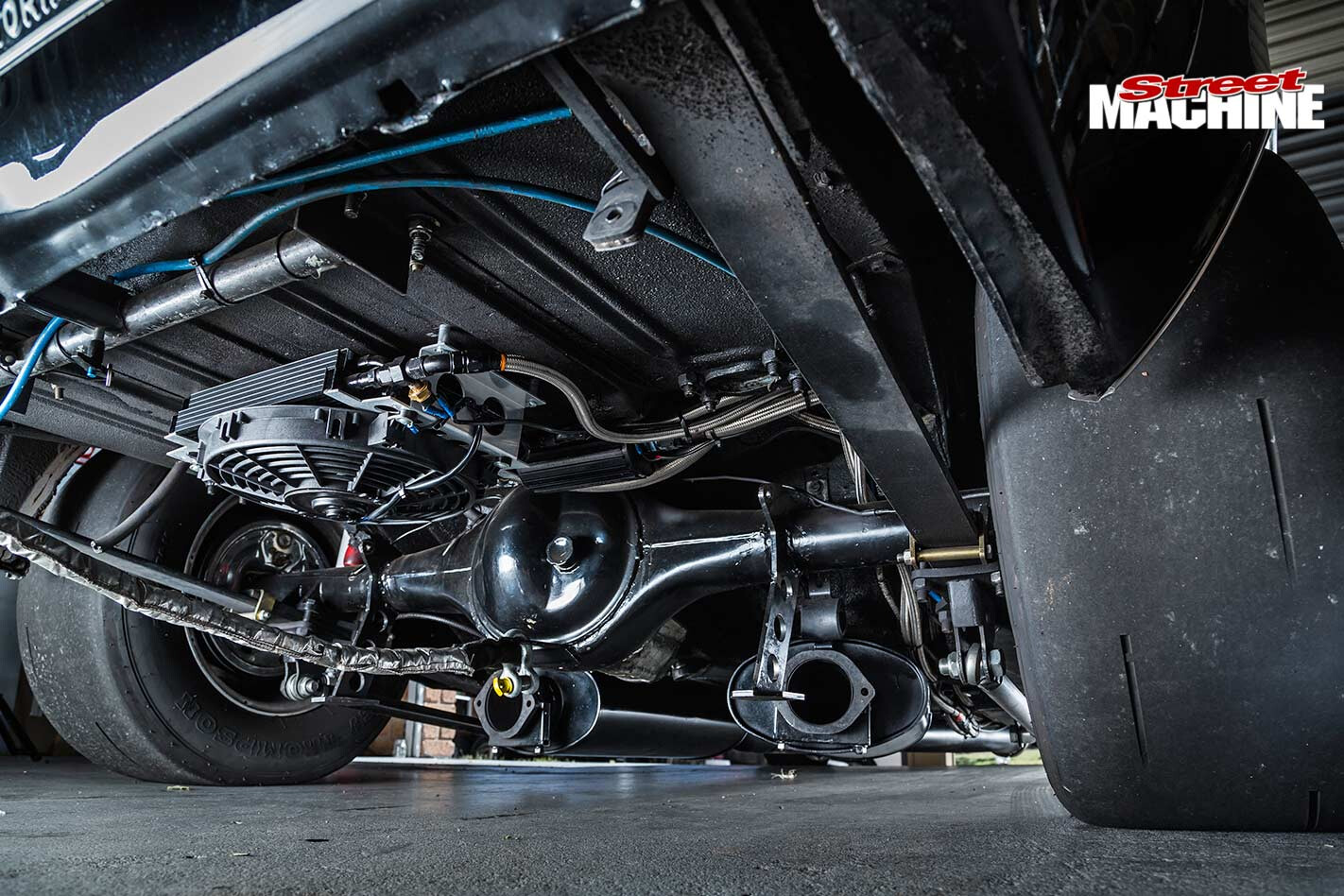

Chevrolet Camaro underside“I had a 150 hit in it previously, but now it has two 150 hits,” he says. “I think I’ll run an 8.50-8.60, as it weighs 3800lb. It’s more of a tough streeter than a race car, but I do take it to the track every now and then.”

While it came with a two-speed, the Camaro has grown a three-speed TH400, packed full of good gear like a full manual reverse-pattern set-up, alloy drum, 38-element sprag and transbrake. It bolts to the big-block with a custom bellhousing that incorporates a scattershield, shrouding the TCE 9.5-inch, 5800rpm nitrous converter.

Out the back behind the custom three-inch tailshaft fitted with 1350 unis and Strange Engineering yokes is a nine-inch diff that runs a Strange centre, 4.11 gears and Moser 31-spline axles. The fat and skinny 15-inch Center Line Auto Drags help complete the Camaro’s wicked pro street vibe.

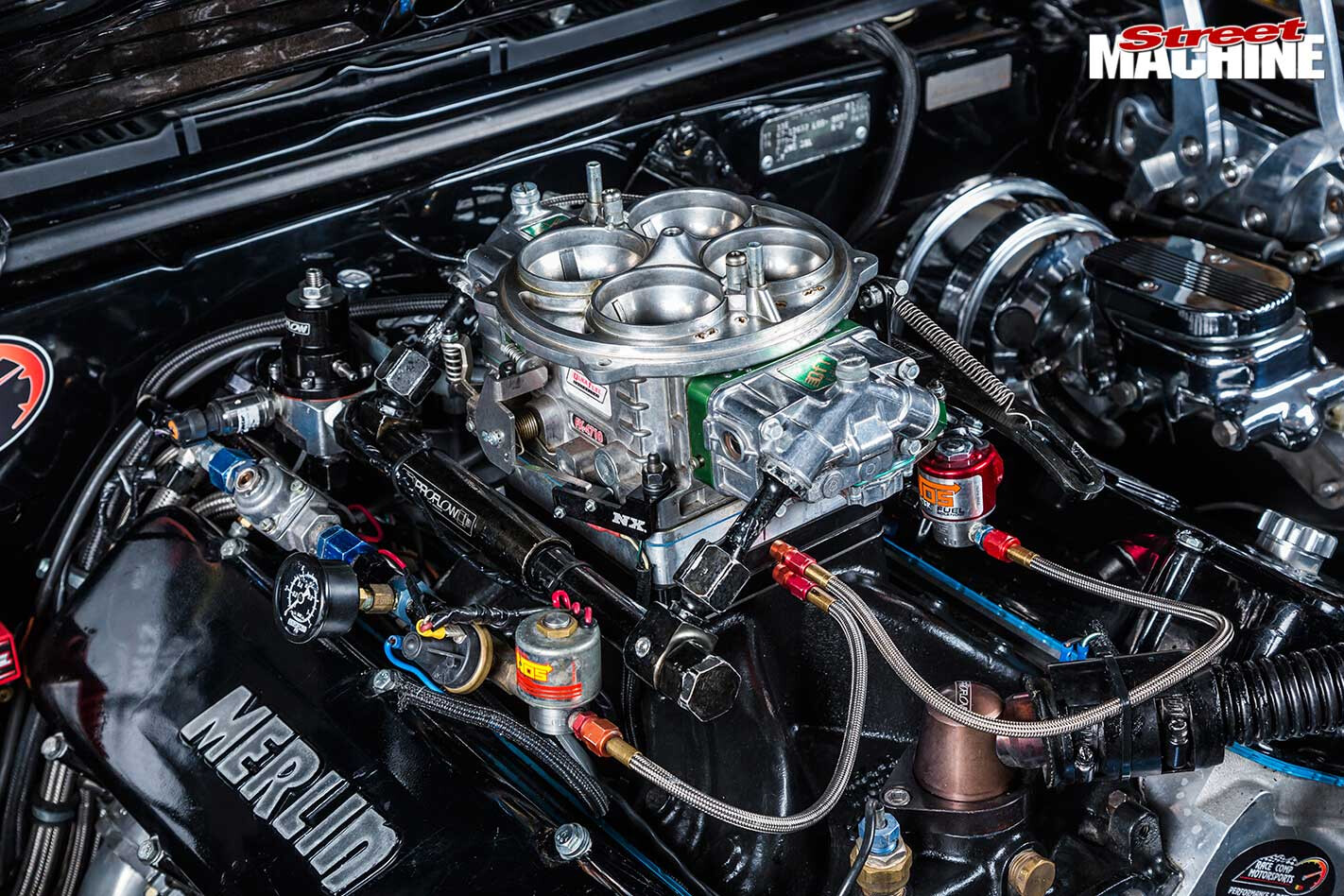

Chevrolet Camaro engine bay“We take it out plenty and it gets driven heaps,” Patto says. “It doesn’t get hot on the road, and it has power steering in it, so it drives great. Cops don’t bother as they must think that’s how these cars came back in the day.

“The only thing that gives it away is the four-inch full-steel reverse cowl. I actually used to have a six-inch cowl but I couldn’t see around it, so it had to go!”

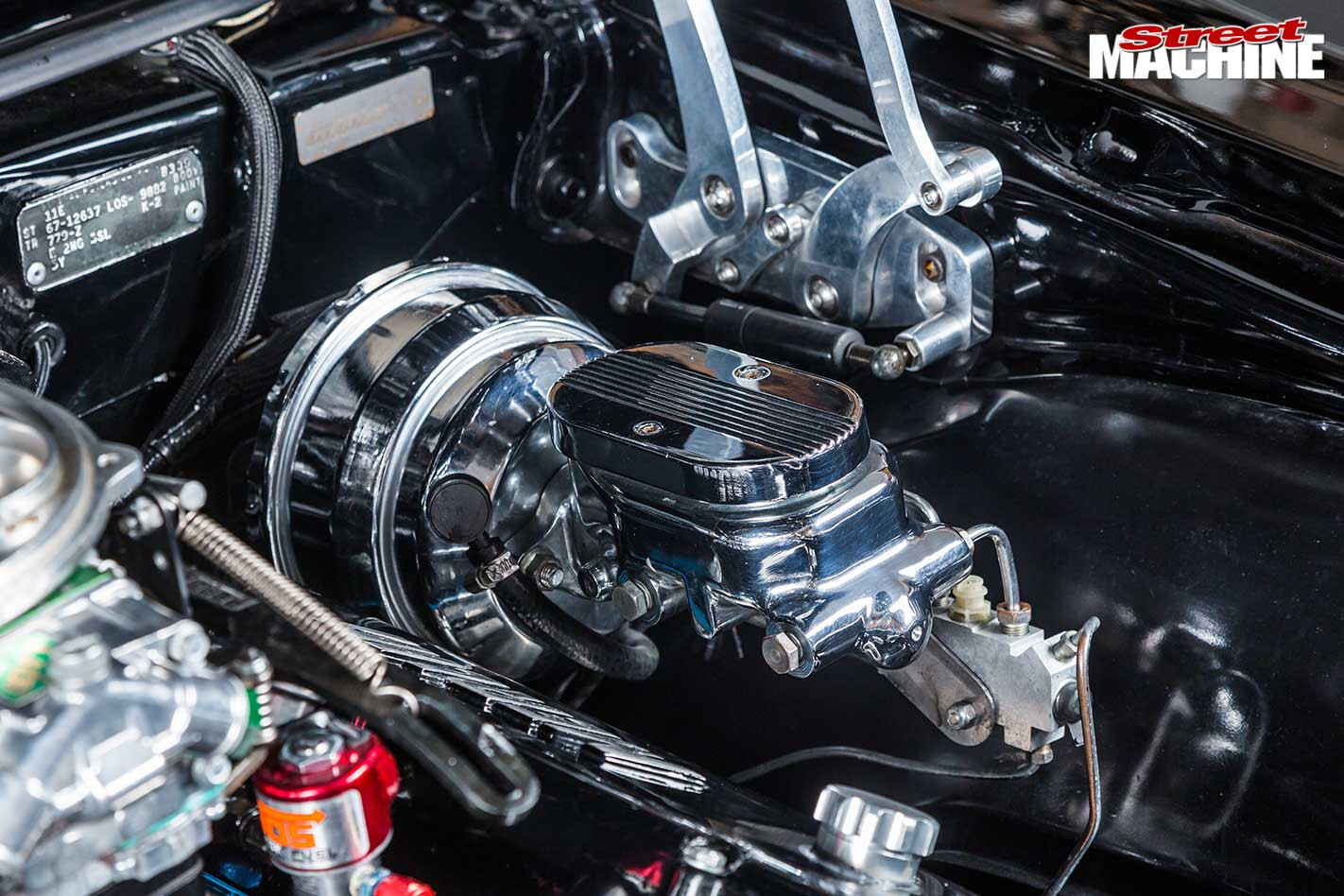

Chevrolet Camaro engine bayWhile it sees plenty of road miles, the nearly-nine-litre V8 isn’t maintenance-free like Aunty Donna’s ’05 Camry.

“Staying on top of the maintenance is a bit of a pain as you’re always checking clearances and lash,” Patto says. “I get away with the solid-roller on the street as I’m pretty conservative with valve-spring pressure and that makes a huge difference. I’d like to do Drag Challenge but it’d be too much on that engine; it’d kill it! I don’t want to be leaning over the front guards rebuilding half an engine, putting lifters in by the side of the road.”

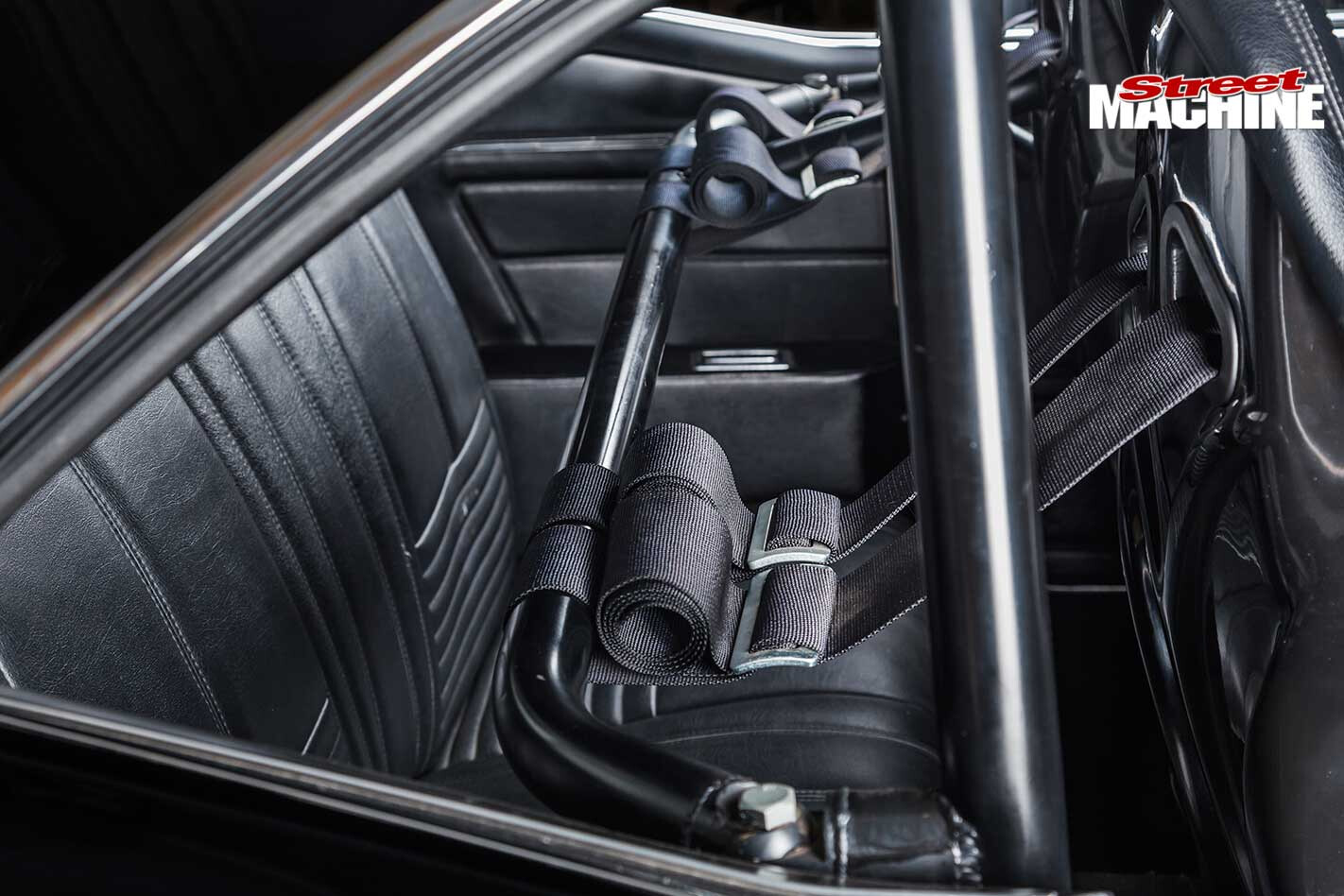

Chevrolet Camaro back seatPatto is able to tread that fine line between having something too wild for the street and having an all-out race car, as he’s comfortable with how the Camaro performs its split duties. As the bloke whose name is on the rego papers, he’s the only person who needs to be at peace with the car.

“I didn’t want to put a ’cage in it, but that was a minimum requirement for ANDRA,” Patto says. “This car is one of the fastest cars I’ve owned, and I’ve had heaps of cars over the years. I could put it on a diet, but it is what it is. How far do you go with them? Do you gut them and turn ’em into a race car? Then you can’t use them on the road!”


Paint: PPG Jet Black

Brand: 548ci Merlin big-block Chev
Induction: Victor Jr
Carburettor: 1050cfm Dominator
Heads: Dart PRO-1 CNC-machined
Camshaft: Solid-roller
Conrods: Compstar H-beam
Pistons: Diamond
Crank: Scat
Fuel system: Aeromotive A1000 pump
Cooling: Twin 16in Spal fans
Exhaust: Custom headers, twin 3.5in exhaust
Ignition: MSD 7AL3 crank trigger

Gearbox: TH400 auto, transbrake, manualised, reverse-pattern
Converter: 9.5in TCE 5800rpm
Diff: 9in, Moser 31-spline axles, Strange Engineering centre, 4.11:1 gears

Front: Moroso springs, Competition Engineering shocks
Rear: Calvert split mono-leaf, Calvert shocks
Brakes: VT Commodore discs, AU Falcon calipers (f), HG Kingswood drums (r)
Master cylinder: Custom

Rims: Center Line Auto Drag; 15×5.5 (f), 15×8.5 (r)
Rubber: Continental (f), Mickey Thompson Pro X 275/60 (r)

James Melmoth from MCE; Wayne Cartledge from Racecomp Motorsports; Jason from Burko Transmissions; Danko from Adicted Performance; Zoran at Competition Engines; Jason at Dominator Race Parts Melbourne; my wife Carolyn and my kids Jorgia and Jesse for letting me do what I love
